Piccolo DC

$477.00 $454.00

Piccolo provides compact charging options in an easy to install compact yet powerful module.

Read more

Out of stock

We give back $1 from every sale to the charity of your choice with i=Change®.

Office fitout or bulk order? Volume discounts available.
Contact our team here for a quote.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Piccolo TUF-HP provides high powered USB A+C laptop, tablet and mobile charging in an easy to install compact yet powerful module.

This innovative solution splits the power system, providing high powered USB A+C device charging to the workspace with the power supply discreetly hidden under the desk, inside cabinetry or fitted into the OE Prodigy cable basket.

Piccolo is powered by our QF30 PSU, splitting the USB outlets from the AC/DC power supply, providing class leading USB charging.

Unique reversible USB A port Unique to OE Elsafe is the reversible Type A port which will ensure a quick single attempt connection every time.

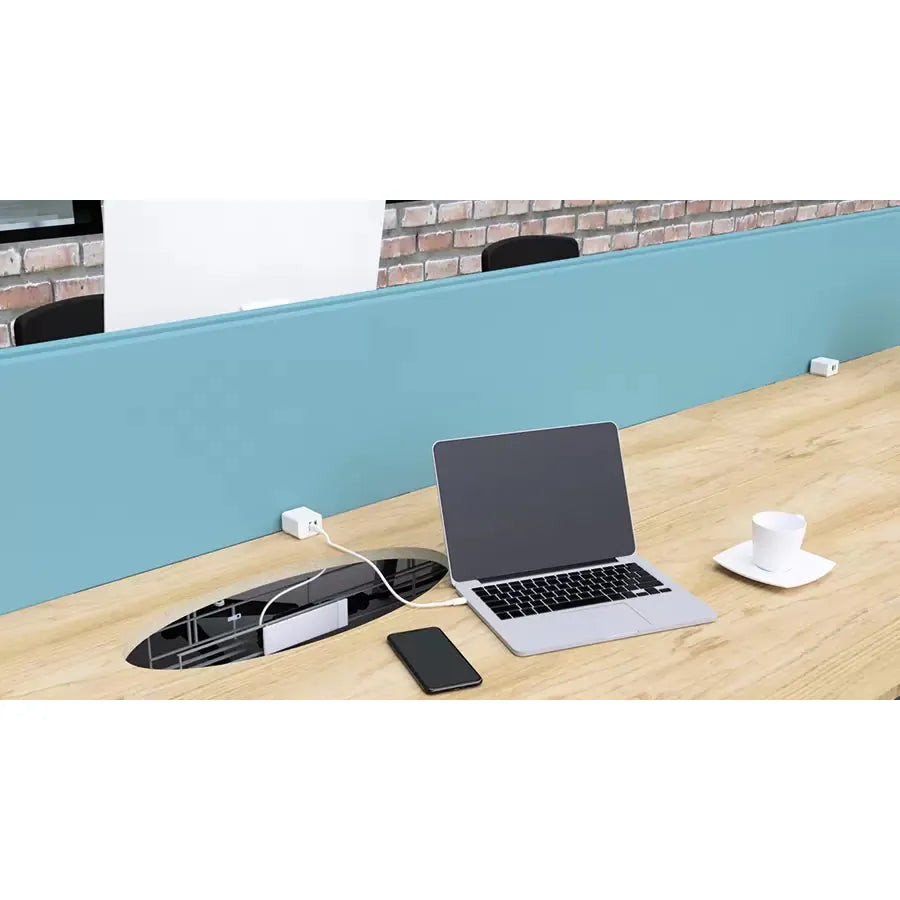

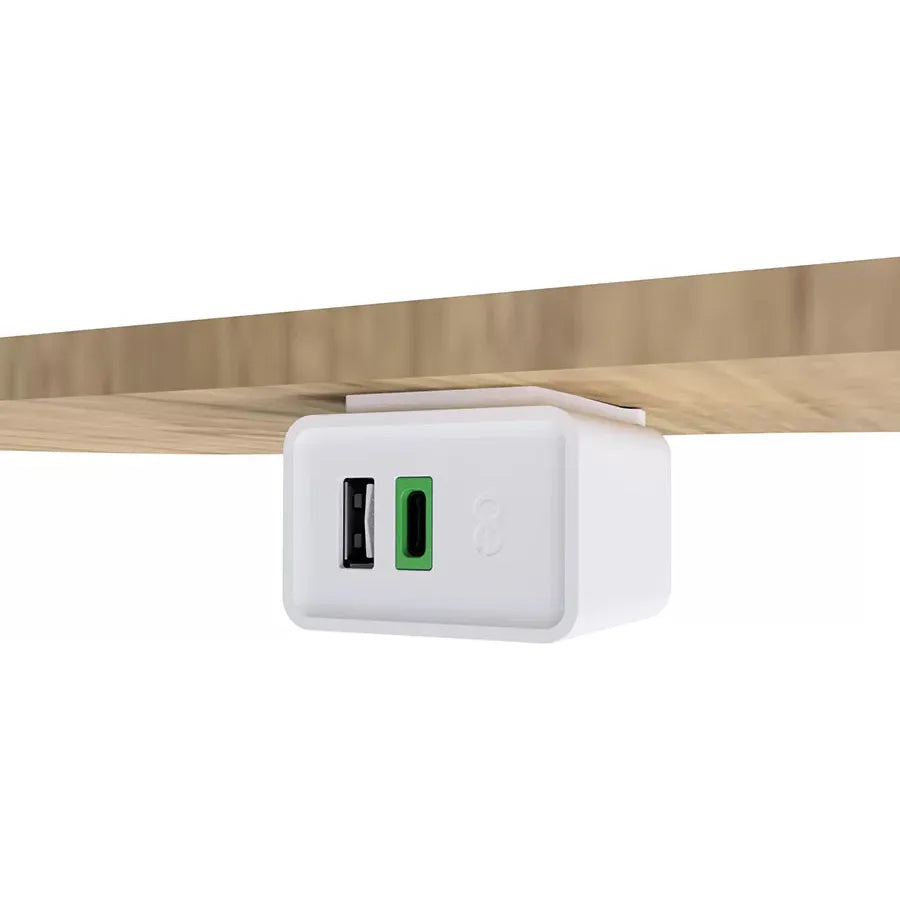

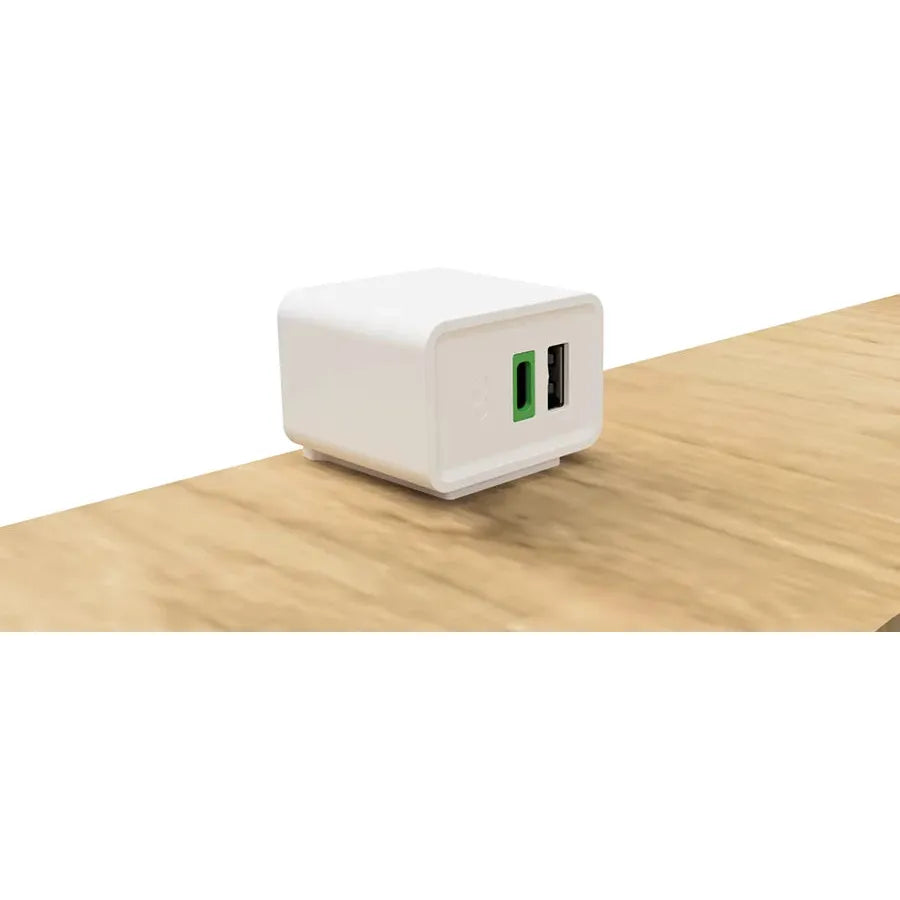

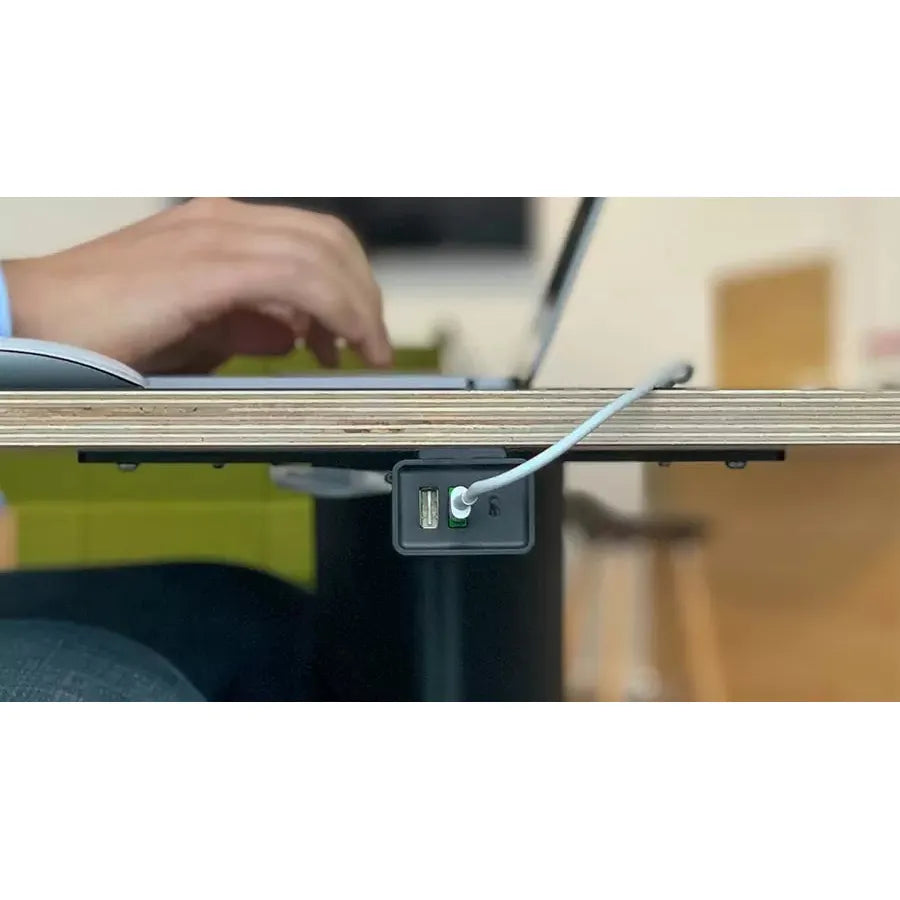

Multiple mounting options Piccolo can be mounted on or under desk, using screws, clamp bracket, velcro or adhesive pads enabling you to provide high power USB charging outlets wherever they are needed.

TUF is safe and designed for public spaces, no data transfer is possible.
Data transfer is not possible as TUF has no external data connections or the ability to store enough code to put malware on a device.

Key Features:

  •  TUF-HP USB Type C fast laptop charging
  • Unique Reversible Type A port
  • Multiple mounting options
  • 24-30V DC power input
  • Powered by the OE QikFIT QF30 PSU
  • Optimum safety for use in public areas
  • Data Sheet
  • Installation Instructions

USB Charging Outlets 1 x Type C (Reversible)
1 x Type A (Reversible)
Power In connector 65mm Male GST08 DC connector
Rated Total Output Power 72W Max
Output Voltages & Currents
TYPE C: MAX 60W
20V/3A, 15V/3A, 9V/3A, 5V/3A (PD3.0)
QC 2/3.0 5V/3A, 9V/2A, 12V/1.5A

TYPE A: MAX 12W
5V / 2.4A IDR BC1.2,
Apple 12W Mode
Samsung Fast Charge

Input voltage 24 – 30V DC
USB Connector Min. Insertions Type A – 10,000
Type C – 10,000
Over Current Protection Yes. Digital control at 3.3A. Auto reset with LED flash
Short Circuit Protection Yes. Digital control at 3.3A. Auto reset
Over Temperature Protection Auto power reduction to PD45W Mode.
20V/2.25A, 15V/3A, 9V/3A, 5V/3A
Rated Operating Temperature
0° TO 25°C

Certifications – Safety
IEC 62368-1 : 2018

Certifications – EMC
EN61204 : 2018

User Replaceable Module
No
